KEEPING YOUR HOME DRY & SAFE:
The 4Ds Principles of Weathertightness

Paulo Silva: Brazilian Architect

The 4Ds principle was developed by Canadian building scientists in the 1990s, particularly by researchers at the Building Envelope Science Group at the National Research Council of Canada (NRC). It was created in response to increasing awareness of moisture-related failures in buildings, particularly in coastal and wet climates. One of the key contributors to this concept was Dr. John Straube, a well-known building scientist who has written extensively about moisture management and building enclosures. The 4Ds framework was formalised to guide the design of rain control strategies for walls, roofs, and other building envelopes.

The principle gained international influence and was later incorporated into New Zealand’s response to the leaky building crisis, particularly in the early 2000s. The New Zealand Building Code (E2/AS1) now includes elements of the 4Ds approach to ensure better weathertightness in modern construction.

When buying or renovating a home in New Zealand, one of the most important things to consider is weathertightness. A home that isn’t properly designed to keep out moisture can lead to leaks, mould, and expensive repairs. But how can you ensure your home stays dry and healthy? That’s where the 4Ds of weathertightness come in. These principles, developed in Canada and widely adopted in New Zealand, help protect homes from moisture damage. Additionally, BRANZ research highlights that everyday household activities such as cooking, showering, and indoor clothes dryingcan introduce significant moisture into a home, potentially leading to mould growth and structural issues. For instance, cooking can add approximately 3 litres of moisture per day, while an unvented clothes dryer can contribute up to 5 litres per load. This accumulation of internal moisture underscores the importance of effective ventilation and moisture management strategies to maintain a healthy living environment.

The 4Ds: Deflection, Drainage, Drying, and Durability

DEFLECTION – Keeping Moisture Out

‍The best way to stop water damage is to prevent moisture from getting inside your home in the first place. This means designing roofs, walls, and windows to direct water away from the building. Simple things like wide eaves, never relying on sealants, and preferring a well-detailed flashing help moisture run off instead of seeping in.

DRAINAGE – Letting Water Escape

‍Even with the best design, some water will always find its way into small spaces. That’s why claddings need proper drainage to allow water to escape before it causes damage. Think of it like a raincoat with ventilation—it protects you but also lets moisture dry out.

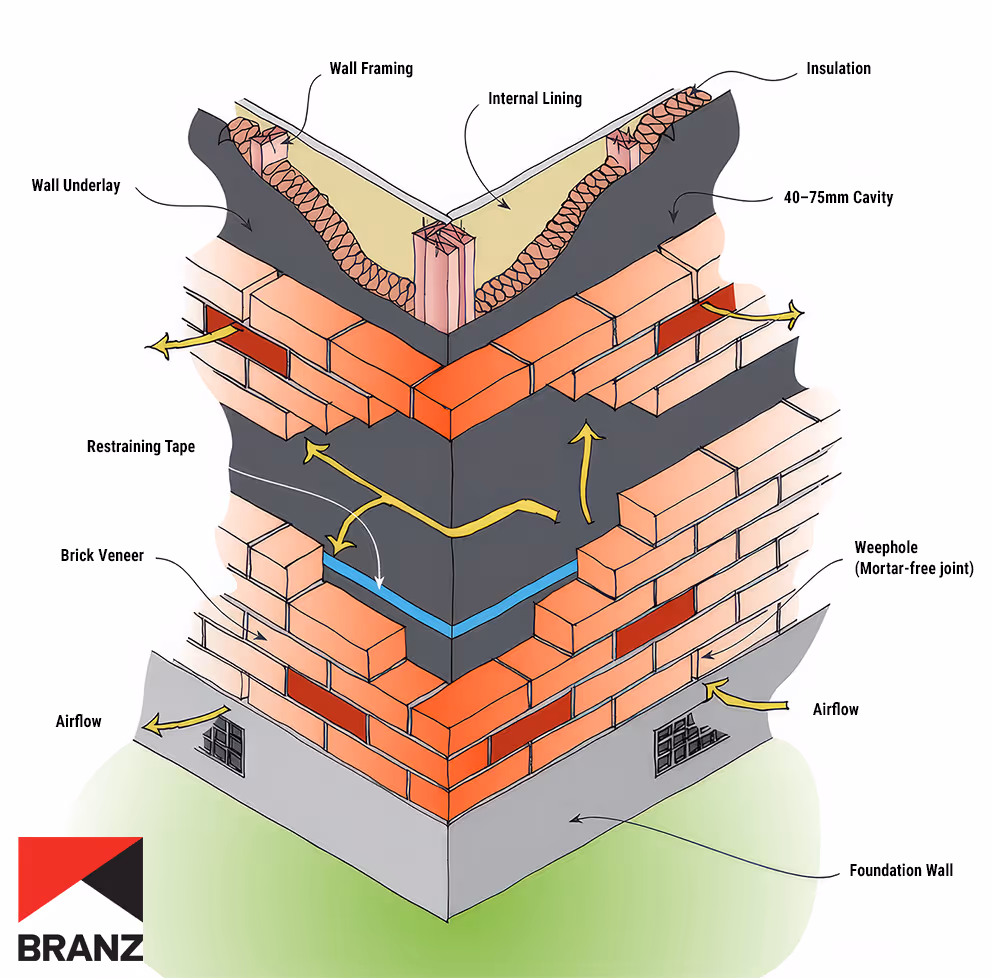

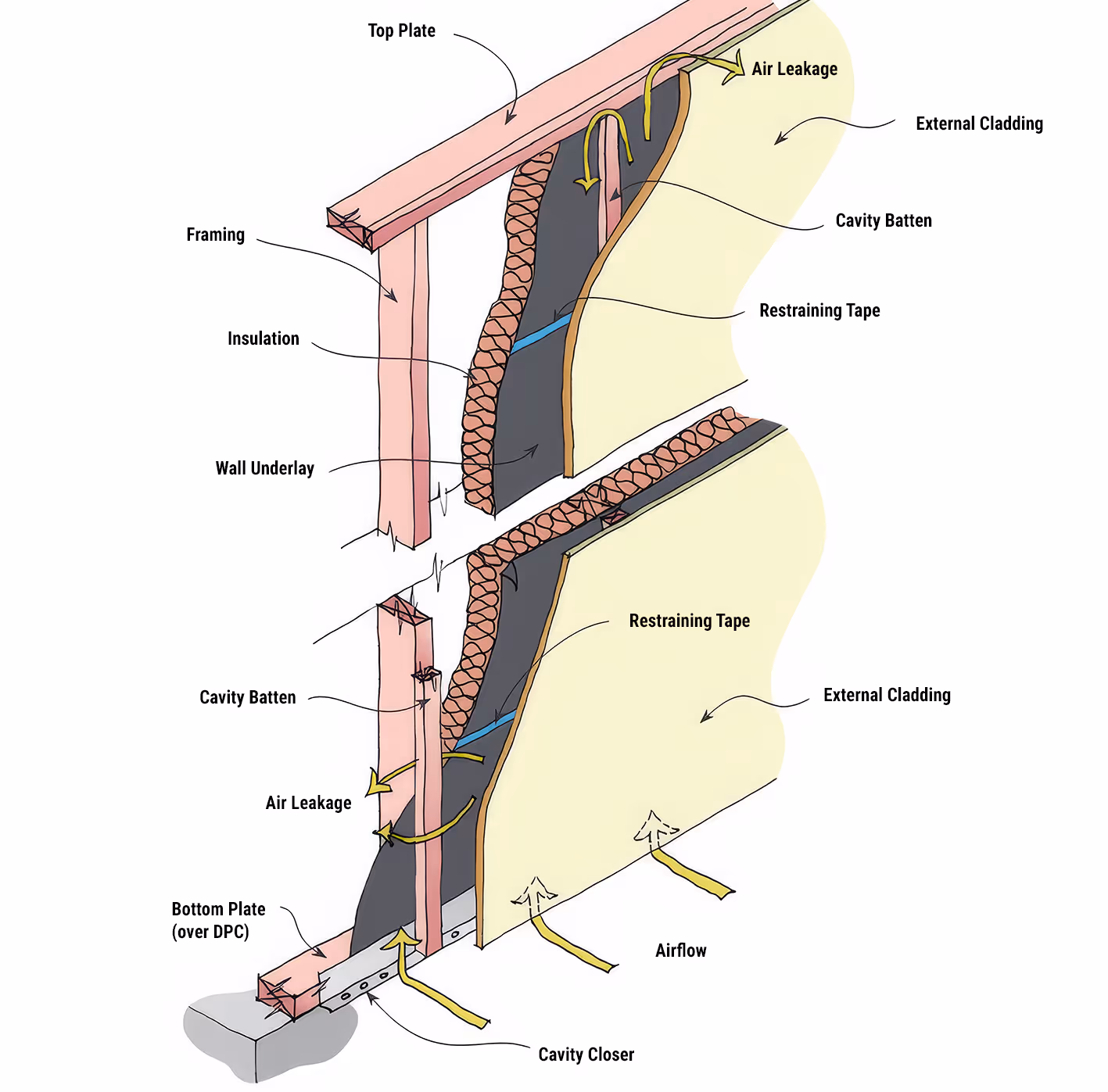

DRYING – Opening Vents is Best

‍Openings at both the top and bottom of cladding cavities allow air to flow through and dry out moisture. The fact is the New Zealand Building Code does not require top venting, but it is crucial in preventing trapped moisture. Without a top vent, water vapour can accumulate and lead to dampness, mould, and decay over time.

DURABILITY – Using Long-Lasting Materials

The materials used in your home should be able to withstand New Zealand’s weather conditions. Choosing high-quality cladding, well-treated timber, and durable flashings will ensure your home remains strong and dry for many years.


Be Sparing with Battens

A well-designed cladding cavity should be as empty as possible to allow for proper airflow and drainage. Too many battens can block ventilation and cause moisture to be trapped. Ideally, battens should only be placed where they are needed for cladding support.

What This Means for Homeowners

If you’re buying or renovating, look for homes built with these 4Ds in mind. Investing in a well-designed, weathertight home means fewer repairs, a healthier living environment, and better long-term value.New Zealand’s climate can be tough on houses, but with smart design and the right materials, your home can stay dry, comfortable, and your family healthy and safe for years to come.
‍

About the Author
‍This article was inspired by BRANZ Build 138 and written by Paulo Silva, a Brazilian registered architect working since 2010 in New Zealand’s architecture and construction industry. He is passionate about weathertight design, retrofitting, energy-efficient homes, and durable building solutions. Paulo is currently working with DCA Architects in Rotorua to help create high-quality architecture in New Zealand.

‍
